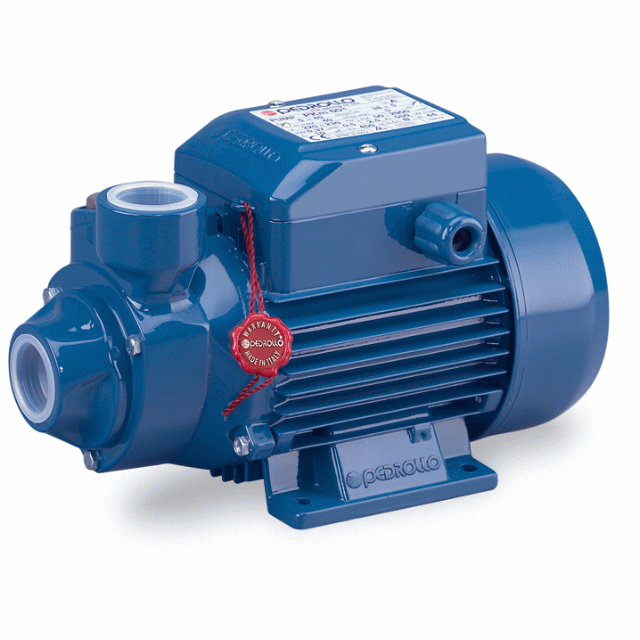

Pedrollo PKH-05A16S (PKm 70), 1/2 HP, 115 Volt, Single Phase Turbine Pump
Pedrollo PKH-05A16S (PKm 70), 1/2 HP, 115 Volt, Single Phase Turbine PumpPedrollo PKH-05A16S (PKm 70), 1/2 HP, 115 Volt, Single Phase Turbine PumpPedrollo PKH-05A16S (PKm 70), 1/2 HP, 115 Volt, Single Phase Turbine Pump

Pedrollo PKH-05A16S (PKm 70), 1/2 HP, 115 Volt, Single Phase Turbine Pump

Call for pricing

The Pedrollo PKH-05A16S 1/2 hp, 115 Volt, Single Phase, end suction, peripheral turbine pump is suitable for domestic or industrial applications.

Specifics

  • 1/2 HP
  • 115 Volt
  • Single Phase
  • 60 HZ
  • End Suction
  • Italian model number PKm 70

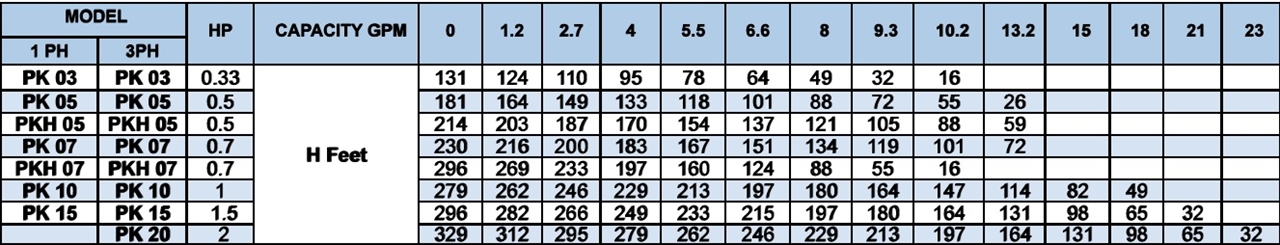

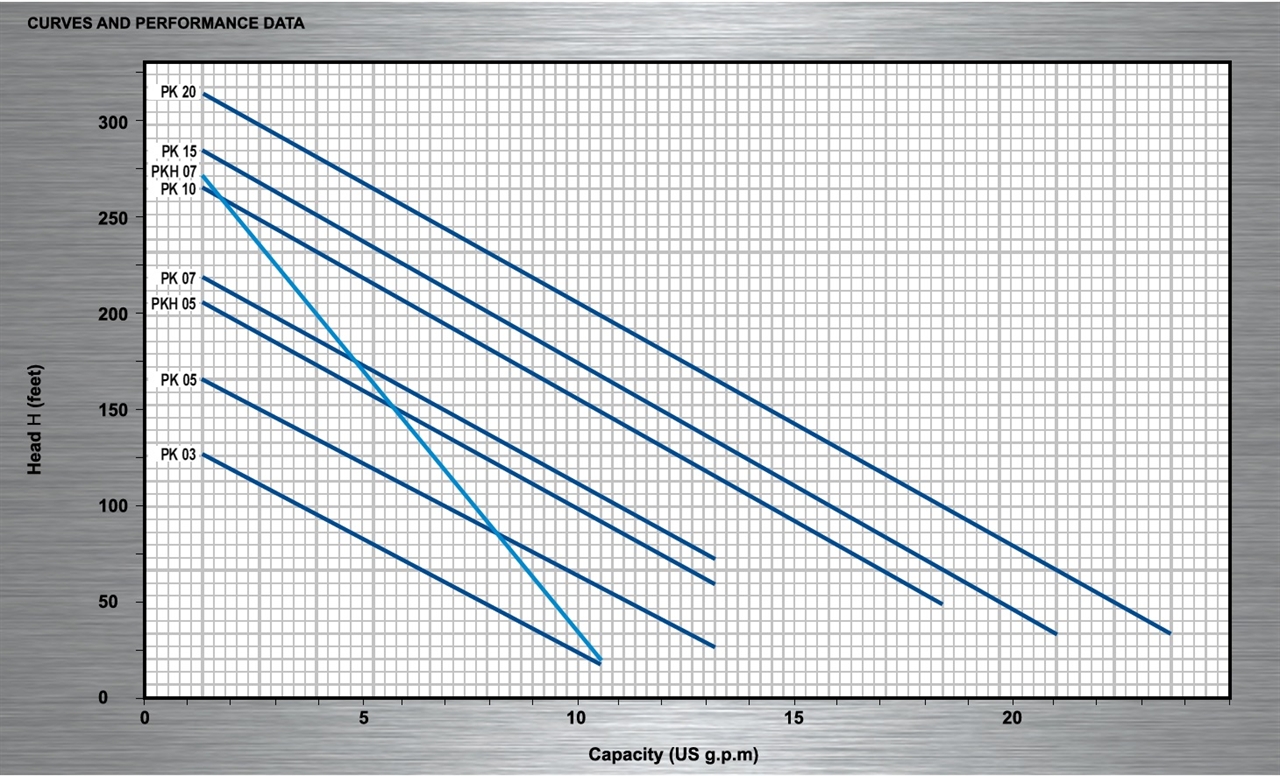

Performance Range

Pedrollo PKH-05A16S (PKm 70), 1/2 HP, 115 Volt, Single Phase Turbine Pump

Use

  • They are recommended for pumping clean water without abrasive particles and liquids that are chemically non aggressive to the materials from which the pump is made.
  • For their reliability, simplicity of use and economy, they are suitable for domestic use and, in particular, for distributing water in combination with small pressure sets, for irrigating gardens.
  • The pumps must be installed in enclosed places, or at least protected against inclement weather.

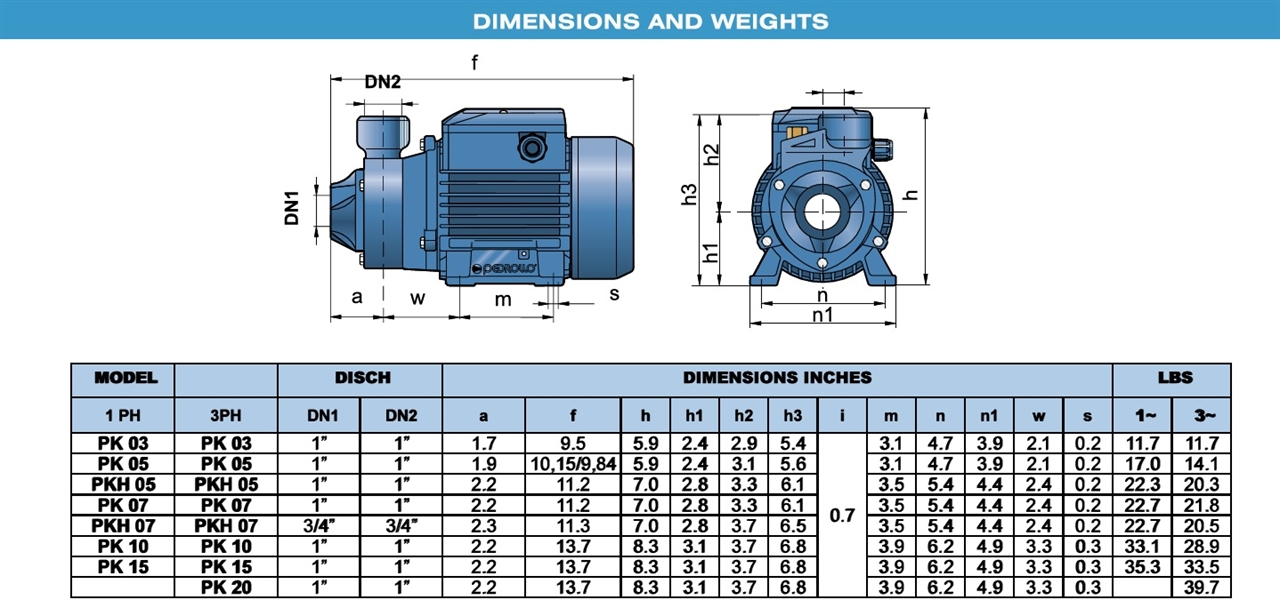

Construction

  • Suction And Discharge: 1″ x 1″
  • Pump Body: Cast Iron, with threaded ports.
  • Motor Bracket: Aluminum with brass insert; reduces starting difficulties due to seizure of the impeller after long periods of inactivity.
  • Impeller: Brass, of the type with radial peripheral vanes.
  • Motor Shaft: Stainless Steel
  • Electric Motor: The pumps are close-coupled to a carefully matched Pedrollo electric motor, quiet running, totally enclosed fan cooled (TEFC), suitable for continuous duty.
