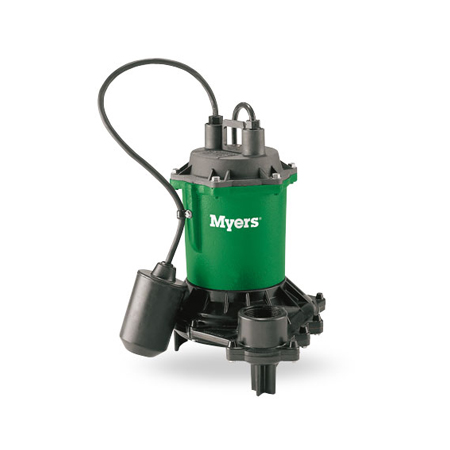

Myers ME40PC-1, .4 HP, 115 Volt, Cast Iron Effluent Pump

Call for pricing

The Myers ME40 series effluent pumps are one of the industry's most efficient models featuring a 4/10 HP motor. This powerful pump provides the flow and head required for demanding dosing systems and drainage applications. The ME40 incorporates cast iron, engineered thermoplastic and stainless steel in combination to produce a powerful and highly durable pump.

Manufactureres: , .

Product Description


  • Effluent Removal
  • Sump Drainage
  • Water Transfer


  • 4/10 HP
  • 115 Volt
  • Single Phase, 60 Hz, 1650 RPM
  • 1 1/2″ Discharge
  • Solids Handling Up to 3/4″
  • Piggyback Float for Manual or Automatic Operation
  • 20′ Cord

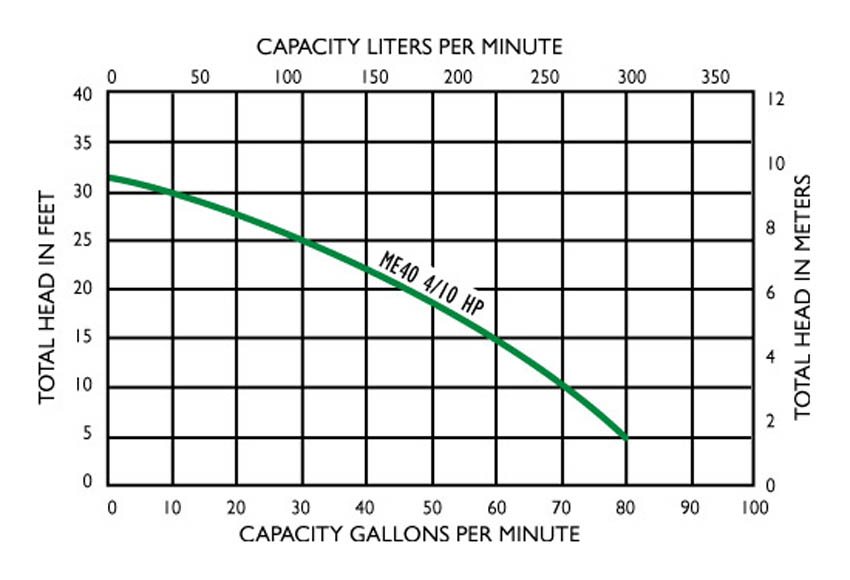

ME40 Flow Curve


  • Efficient Dosing: Two-vane cast iron impeller design provides maximum dosing efficiency
  • Powerful Torque: High-torque, permanent split capacitor (PSC) motor; no starting switches or relays to wear out
  • Rugged and cool: Rugged-built, oil-filled motor for continuous bearing lubrication and maximum heat dissipation
  • Water-tight Fit: Positive sealing, quick-connect float and switch cords make replacement easy
  • Seal Protection: Lower ball bearing and heavy duty Type 6 seal for added pump life
  • Automatically Better: Field-tested, wide-angle, mercuryfree float switch provides maximum drawdown (automatic models only)
  • Dual operation: Automatic float switch or manual operation by plugging directly into outlet
  • Thermal Protection: Heat sensor overload protection with automatic reset when motor cools to a safe operating temperature


Product documents

Myers ME Series Manual

Myers ME Series Spec Sheet
